LARGE TANK POLISHING MACHINE

Name: LARGE TANK POLISHING MACHINE
Brand: www.xydpolishing.com
Availability: InStock
Rating: 5 (1 reviews)

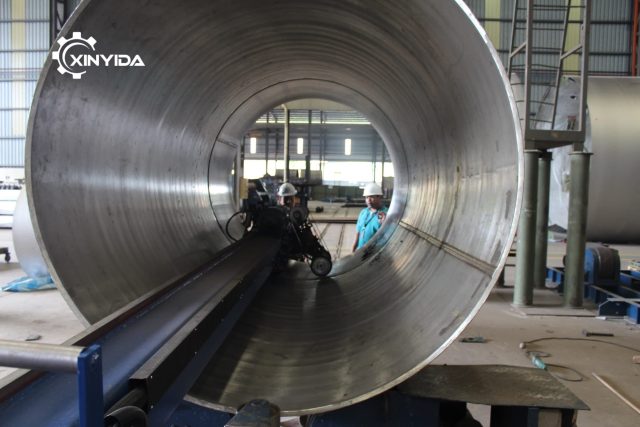

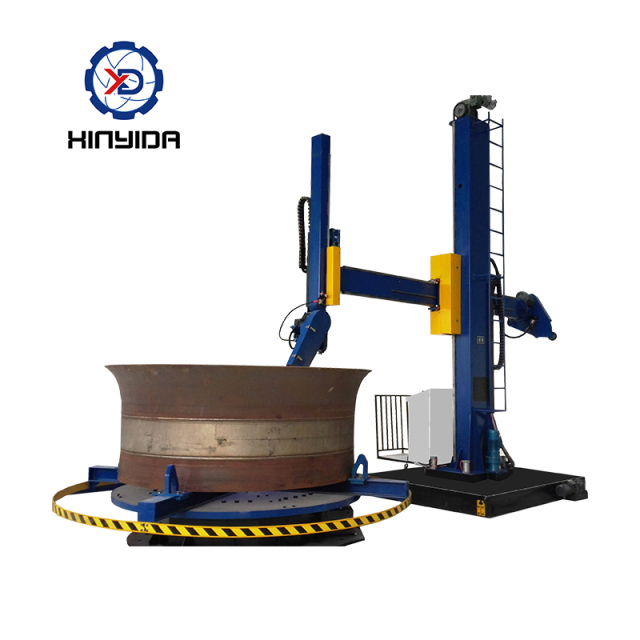

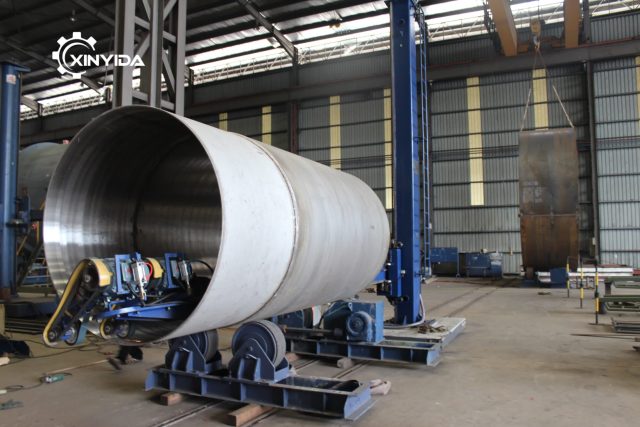

The Tank Shell and Dish End Polishing Equipment consists of a beam, a column, a base, a tank grinding head, a grinding head for dished end, a tank rolling table, a dished end rolling table, a control cabinet and other components. Suitable for tank with diameter φ800mm-3000mm, dished end with diameter φ500mm-3000mm inside and outside polishing, optional dished end’s turntable load range: 1-20 tons.

Get A Quote

Add to Quote List Parcourir la liste

SPECIFICATION

Technical Specification

Machine dimension	*LWH(in: mm): 380016003080*
Machine weight	2500KGS
Input power	8KW
Control system	PLC/CNC
Polishing materials	Abrasive Belt, Nylon Wheel, Cloth Wheel, Thousand Impeller, and etc.
Machining accuracy	surface roughness Ra≤0.4μm
Producing efficiency	8m²/h

Polishing Ability

Workpiece size	For tank body	Diameter	800mm-3000mm
		Max. length	2500mm
		Max. weight	20T
	For dished end	Diameter	500mm-3000mm
		Max. depth	2500mm
		Max. weight	20T
